Description

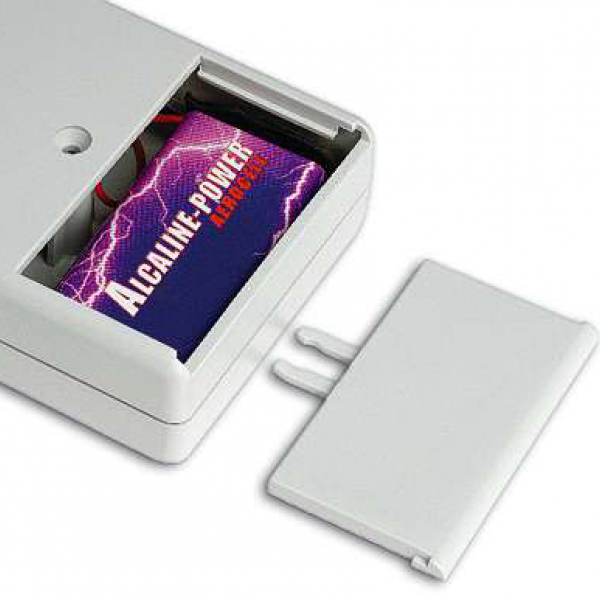

ABS enclosures with rounded corners. 9V(PP3) battery compartment with a snap sliding lid. The model “10124” have one, two and four blue push-buttons set. The model “10005-DW1” have on the top a transparent window. The models “10005-B”, “10005-DW1” and “10124” have a front IR-panel replaceable by a plastic panel coloured as the box. Matt surface finish. Closing by only one screw. Upon request stainless steel clip (Mod. CL1).
Details
Products
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
10005-B.5 | 82 | 60 | 25 |
9018 |
AG-ATY | 52,5 | 35 | 1 | 1 x 9V |
CL1 AB9 VT |
PDF DWG |
|
|
10005-B.9 | 82 | 60 | 25 |
9004 |
P2H-AT | 52,5 | 35 | 1 | 1 x 9V |
CL1 AB9 VT |
PDF DWG |
|
|

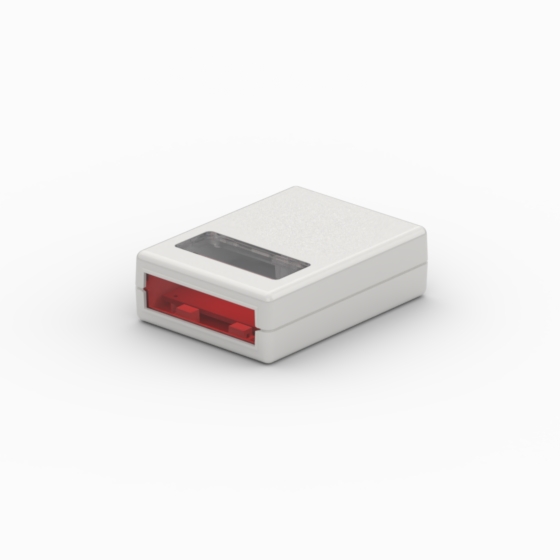

10005-DW1.5 | 82 | 60 | 25 |
9018 |
AG-ATY | 52,5 | 35 | 1 | 1 x 9V |
CL1 AB9 DW1 VT |
PDF DWG |
|
|
10005-DW1.9 | 82 | 60 | 25 |
9004 |
P2H-AT | 52,5 | 35 | 1 | 1 x 9V |
CL1 AB9 DW1 VT |
PDF DWG |
|
|
10124.5 | 82 | 60 | 25 |
9018 |
AG-ATY | 52,5 | 35 | 1 | 1 x 9V |
CL1 AB9 RC1 RC2 RC4 VT |
PDF DWG |
|
|
10124.9 | 82 | 60 | 25 |
9004 |
P2H-AT | 52,5 | 35 | 1 | 1 x 9V |
CL1 AB9 RC1 RC2 RC4 VT |
PDF DWG |
12 product families, 155 series. You can't find what you're looking for? Contact us
